PartitionSplitter

PartitionSplitter
	Special (optional) widgets

Name

PartitionSplitter — Hard disk partition splitter tool (optional widget)

Synopsis

`PartitionSplitter (`	integer	`usedSize` ,
	integer	`totalFreeSize` ,
	integer	`newPartSize` ,
	integer	`minNewPartSize` ,
	integer	`minFreeSize` ,
	string	`usedLabel` ,
	string	`freeLabel` ,
	string	`newPartLabel` ,
	string	`freeFieldLabel` ,
	string	`newPartFieldLabel` `)`;

Parameters

integer usedSize: size of the used part of the partition
integer totalFreeSize: total size of the free part of the partition (before the split)
integer newPartSize: suggested size of the new partition
integer minNewPartSize: minimum size of the new partition
integer minFreeSize: minimum free size of the old partition
string usedLabel: BarGraph label for the used part of the old partition
string freeLabel: BarGraph label for the free part of the old partition
string newPartLabel: BarGraph label for the new partition
string freeFieldLabel: label for the remaining free space field
string newPartFieldLabel: label for the new size field

Properties

integer Value: the numerical value

Description

A very specialized widget to allow a user to comfortably split an existing hard disk partition in two parts. Shows a bar graph that displays the used space of the partition, the remaining free space (before the split) of the partition and the space of the new partition (as suggested). Below the bar graph is a slider with an input fields to the left and right where the user can either input the desired remaining free space or the desired size of the new partition or drag the slider to do this.

The total size is usedSize+freeSize.

The user can resize the new partition between minNewPartSize and totalFreeSize-minFreeSize.

	Note
	This is a "special" widget, i.e. not all UIs necessarily support it. Check for availability with HasSpecialWidget( `PartitionSplitter ) before using it.

Usage

 	if ( HasSpecialWidget( `PartitionSplitter ) {...
 	`PartitionSplitter( 600, 1200, 800, 300, 50,
                                 "Windows used\n%1 MB", "Windows used\n%1 MB", "Linux\n%1 MB", "Linux ( MB )" )

Examples

          {

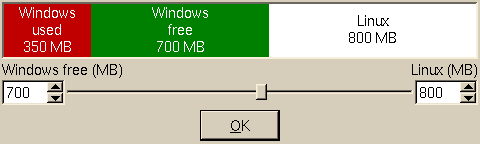

    if ( ! UI::HasSpecialWidget(`PartitionSplitter) )
    {
	UI::OpenDialog(
		   `VBox(
			 `Label("Error: This UI doesn't support the PartitionSplitter widget!"),
			 `PushButton(`opt(`default), "&OK")
			 )
		   );
	UI::UserInput();
	UI::CloseDialog();

	return;
    }

    string  unit	= "MB";
    integer win_used	= 350;
    integer total_free	= 1500;
    integer min_free	= 50;
    integer linux_min	= 300;
    integer linux_size	= 800;

    UI::OpenDialog(
	       `VBox(
		     `HSpacing( 60 ),	// wider default size
		     `PartitionSplitter( win_used, total_free,
					 linux_size, linux_min, min_free,
					 "Windows\nused\n%1 "	+ unit,
					 "Windows\nfree\n%1 " 	+ unit,
					 "Linux\n%1 " 		+ unit,
					 "Windows free (" + unit + ")",
					 "Linux (" + unit + ")"
					 ),
		     `PushButton(`opt(`default), "&OK")
		     )
	       );
    UI::UserInput();
    UI::CloseDialog();
}

          {

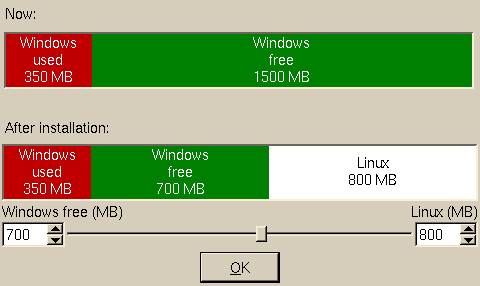

    if ( ! UI::HasSpecialWidget(`Slider) ||
	 ! UI::HasSpecialWidget(`BarGraph ) )
    {
	UI::OpenDialog(
		   `VBox(
			 `Label("Error: This UI doesn't support the required special widgets!"),
			 `PushButton(`opt(`default), "&OK")
			 )
		   );
	UI::UserInput();
	UI::CloseDialog();

	return;
    }

    string  unit	= "MB";
    integer win_used	= 350;
    integer total_free	= 1500;
    integer min_free	= 50;
    integer linux_min	= 300;
    integer linux_size	= 800;

    UI::OpenDialog(
	       `VBox(
		     `HSpacing( 60 ),	// wider default size
		     `Left( `Label( "Now:") ),
		     `BarGraph( `opt(`vstretch),
				[ win_used, total_free ],
				[
				 "Windows\nused\n%1 " + unit,
				 "Windows\nfree\n%1 " + unit
				]
				),
		     `VSpacing(1),
		     `Left( `Label( "After installation:" ) ),
		     `PartitionSplitter( win_used, total_free,
					 linux_size, linux_min, min_free,
					 "Windows\nused\n%1 "	+ unit,
					 "Windows\nfree\n%1 " 	+ unit,
					 "Linux\n%1 " 		+ unit,
					 "Windows free (" + unit + ")",
					 "Linux (" + unit + ")"
					 ),
		     `PushButton(`opt(`default), "&OK")
		     )
	       );
    UI::UserInput();
    UI::CloseDialog();
}
