Name

Slider — Numeric limited range input (optional widget)

Synopsis

Slider ( string  label ,
  integer  minValue ,
  integer  maxValue ,
  integer  initialValue );

Parameters

string label

Explanatory label above the slider

integer minValue

minimum value

integer maxValue

maximum value

integer initialValue

initial value

Properties

integer Value

the numerical value

string Label

the slider label

Description

A horizontal slider with (numeric) input field that allows input of an integer value in a given range. The user can either drag the slider or simply enter a value in the input field.

Remember you can use `opt( `notify ) in order to get instant response when the user changes the value - if this is desired.

[Note]Note

This is a "special" widget, i.e. not all UIs necessarily support it. Check for availability with HasSpecialWidget( `Slider ) before using it.

Usage

 	if ( HasSpecialWidget( `Slider ) {...
 	`Slider( "Percentage", 1, 100, 50 )


Examples

          {
    if ( ! UI::HasSpecialWidget(`Slider) )
    {
	UI::OpenDialog(
		   `VBox(
			 `Label("Error: This UI doesn't support the Slider widget!"),
			 `PushButton(`opt(`default), "&OK")
			 )
		   );
	UI::UserInput();
	UI::CloseDialog();

	return;
    }

    UI::OpenDialog(
	       `VBox(
		     `Slider( "Percentage", 0, 100, 50),
		     `PushButton(`opt(`default), "&OK")
		     )
	       );
    UI::UserInput();
    UI::CloseDialog();
}

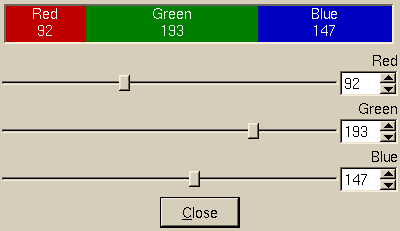

          // Advanced Slider + BarGraph example:
//
// Display a dialog with a bar graph for RGB color percentages
// and 3 sliders for the RGB percentage.
// Update the bar graph while the user adjusts the RGB values.
//
// Unfortunately the colors don't match any more in the BarGraph widget - they
// used to be red, blue and green. You need to use a bit of imagination
// here. ;-)

{
    // Check for availability of required widgets

    if ( ! UI::HasSpecialWidget(`Slider) ||
	 ! UI::HasSpecialWidget(`BarGraph ) )
    {
	UI::OpenDialog(
		   `VBox(
			 `Label("Error: This UI doesn't support the required special widgets!"),
			 `PushButton(`opt(`default), "&OK")
			 )
		   );
	UI::UserInput();
	UI::CloseDialog();

	return;
    }


    // Initialize RGB values

    integer red   = 128;
    integer blue  = 128;
    integer green = 128;


    // Create the dialog

    UI::OpenDialog(
	       `VBox(
		     `HSpacing(50),	// force width
		     `BarGraph( `id(`graph),
				[ red, green, blue ],
				[ "Red\n%1", "Green\n%1", "Blue\n%1" ] ),
		     `Slider( `id(`red),   `opt(`notify), "Red",   0, 255, red   ),
		     `Slider( `id(`green), `opt(`notify), "Green", 0, 255, green ),
		     `Slider( `id(`blue),  `opt(`notify), "Blue",  0, 255, blue  ),
		     `PushButton(`id(`close), `opt(`default), "&Close")
		     )
	       );


    // Event processing loop - left only via the "close" button
    // or the window manager close button / function.
    any widget = nil;

    do
    {
	widget = UI::UserInput();

	if ( widget == `red   ||	// any of the sliders?
	     widget == `blue  ||
	     widget == `green   )
	{
	    // Get all slider values

	    red   = (integer) UI::QueryWidget(`id(`red),   `Value );
	    green = (integer) UI::QueryWidget(`id(`green), `Value );
	    blue  = (integer) UI::QueryWidget(`id(`blue),  `Value );


	    // Update bar graph

	    UI::ChangeWidget(`id(`graph), `Values, [ red, green, blue ] );
	}
    } while ( widget != `close &&	// the real "Close" button
	      widget != `cancel );	// the window manager close function/button

    UI::CloseDialog();
}


          /**
 * Advanced ColoredLabel example: A sample ColoredLabel widget and sliders
 * for both foreground and background colors.
 **/
{
    if ( ! UI::HasSpecialWidget(`ColoredLabel) || ! UI::HasSpecialWidget(`Slider) )
    {
	UI::OpenDialog(
		   `VBox(
			 `Label("Error: This UI doesn't support the required special widgets!"),
			 `PushButton(`opt(`default), "&OK")
			 )
		   );
	UI::UserInput();
	UI::CloseDialog();

	return;
    }

    define term sample( integer fg_red, integer fg_green, integer fg_blue,
			integer bg_red, integer bg_green, integer bg_blue ) ``{
	return `ColoredLabel( `opt(`hstretch, `boldFont),
			      "Use the sliders\nto change color",
			      `rgb( fg_red, fg_green, fg_blue ),
			      `rgb( bg_red, bg_green, bg_blue ),
			      30 );
    };

    UI::OpenDialog(
	       `VBox(
		     `ReplacePoint(`id(`sample), sample( 200, 0, 0,
							 0, 0, 200) ),
		     `VSpacing(),
		     `HBox(
			   `Frame( "Foreground",
				   `VBox(
					 `Slider(`id(`fg_red  ),`opt(`notify), "&red",   0, 255, 200 ),
					 `Slider(`id(`fg_green),`opt(`notify), "&green", 0, 255,   0 ),
					 `Slider(`id(`fg_blue ),`opt(`notify), "&blue",  0, 255,   0 )
					 )
				   ),
			   `Frame( "Backround",
				   `VBox(
					 `Slider(`id(`bg_red  ), `opt(`notify), "r&ed",   0, 255,   0 ),
					 `Slider(`id(`bg_green), `opt(`notify), "gree&n", 0, 255,   0 ),
					 `Slider(`id(`bg_blue ), `opt(`notify), "b&lue",  0, 255, 200 )
					 )
				   )
			   ),
		     `VSpacing(),
		     `PushButton(`id(`close), "&Close")
		     )
	       );

    any widget = nil;

    do
    {
	widget = UI::UserInput();

	if ( widget != `close )
	{
	    UI::ReplaceWidget(`id(`sample),
			  sample( (integer) UI::QueryWidget(`id(`fg_red  ), `Value ),
				  (integer) UI::QueryWidget(`id(`fg_green), `Value ),
				  (integer) UI::QueryWidget(`id(`fg_blue ), `Value ),

				  (integer) UI::QueryWidget(`id(`bg_red  ), `Value ),
				  (integer) UI::QueryWidget(`id(`bg_green), `Value ),
				  (integer) UI::QueryWidget(`id(`bg_blue ), `Value )
				  )
			  );

	}

    } while ( widget != `close );

    UI::CloseDialog();
}
