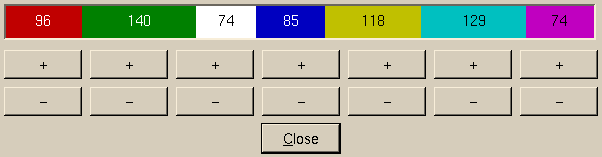

// Advanced BarGraph example:
//
// Create a dialog with a BarGraph with a number of segments
// and a "+" and a "-" button for each segment.
{
// Check for availability of the BarGraph widget - this is necessary since
// this is an optional widget that not all UIs need to support.
if ( ! UI::HasSpecialWidget(`BarGraph) )
{
// Pop up error message if the BarGraph widget is not available
UI::OpenDialog(
`VBox(
`Label("Error: This UI doesn't support the BarGraph widget!"),
`PushButton(`opt(`default), "&OK")
)
);
UI::UserInput();
UI::CloseDialog();
return;
}
// list values = [ 100, 200, 300, 150, 250, 120, 200, 120 ];
list<integer> values = [ 100, 100, 100, 100, 100, 100, 100, 100 ];
integer inc = 10; // increment / decrement for each button press
// Create the main dialog:
//
// One BarGraph at the top, below that two rows of equal sized (thus the
// weights) buttons, below that a "close" button.
//
// The "+" / "-" -buttons use an integer value as their ID which can be
// used to point to the index of the value to be changed. If the ID is
// negative it means subtract rather than add.
term plus_buttons = `HBox();
term minus_buttons = `HBox();
integer i = 1;
foreach( `val, values, ``{
plus_buttons = add( plus_buttons, `HWeight( 1, `PushButton(`id( i), "+" ) ) );
minus_buttons = add( minus_buttons, `HWeight( 1, `PushButton(`id(-i), "-" ) ) );
i = i+1;
});
UI::OpenDialog(
`VBox(
`BarGraph(`id(`bar), values ),
plus_buttons,
minus_buttons,
`PushButton(`id(`close), `opt(`default), "&Close")
)
);
// Event processing loop - left only via the "close" button
// or the window manager close button / function.
any button_id = nil;
do
{
button_id = UI::UserInput(); // wait for button click
if ( button_id != `close && button_id != `cancel )
{
integer sign = 1;
if ( button_id < 0 )
{
sign = -1;
button_id = -(integer)button_id;
}
// Loop over the values. Increment the value corresponding to the
// clicked button, decrement all others as to maintain the total
// sum of all values - or vice versa for negative button IDs
// (i.e. "-" buttons).
list<integer> new_values = [];
integer i = 0;
while ( i < size( values ) )
{
integer old_val = values[i]:0;
if ( i+1 == button_id )
new_values = add( new_values, old_val + (sign*inc) );
else
new_values = add( new_values, old_val + (-sign *(inc/( size(values)-1))) );
i = i+1;
}
values = new_values;
UI::ChangeWidget(`id(`bar), `Values, values );
}
} while ( button_id != `close && button_id != `cancel );
UI::CloseDialog();
}
|
