Allows setup of the boot menu title for the selected bootloader. So you can have suse-SLED-foo as the image name but a different name as the boot display name. Spaces are not allowed in the display name because it causes problems for some bootloaders and kiwi did not take the effort to separate the ones which can display them correctly from the ones which can't

specifies a KIWI git revision number which is known to build a working image from this description. If the KIWI git revision doesn't match the specified value, the process will exit. The currently used git revision can be queried by calling kiwi --version.

sets an identification number which appears as file /etc/ImageID within the image.

Use the lxc or docker image type to build a linux container image For additional information refer to the Chapter 11, Linux Containers and Docker chapter.

Use one of the following image types to build a plain filesystem image. This will create a file containing the data in the specified filesystem and you can loop mount the image to view the contents e.g image="ext3":

Use the tbz image type to just pack the unpacked image tree into a tarball.

Use the cpio image type to specify the generation of a boot image (initrd). When generating a boot image, it is possible to specify a specific boot profile and boot kernel using the optional bootprofile="default" and bootkernel="std" attributes.

A boot image should group the various supported kernels into profiles. If the user chooses not to use the profiles supplied by KIWI, it is required that one profile named std be created. This profile will be used if no other bootkernel is specified. Further it is required to create a profile named default. This profile is used when no bootprofile is specified.

It is recommended that special configurations that omit drivers, use special drivers and/or special packages be specified as profiles.

The bootprofile and bootkernel attribute are respected within the definition of a system image. Us the attribute and value type="system" of the description element to specify the creation of a system image. The values of the bootprofile and bootkernel attributes are used by KIWI when generating the boot image.

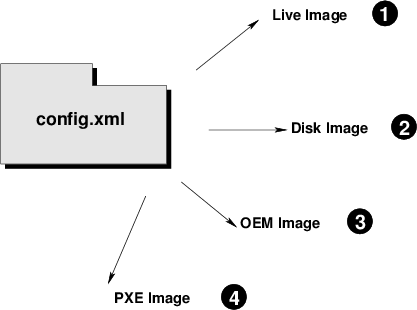

Specify the key-value pair image="iso" to generate a live system suitable for deployment on optical media (CD or DVD). Use the boot="isoboot/suse-*" attribute when generating this image type to select the appropriate boot image for optical media. In addition the optional flags attribute may be set to the following values with the effects described below:

If the flags attribute is not used the filesystem will be squashfs compressed for /bin /boot /lib /lib64 /opt /sbin and /usr. The rest of the filesystem is packed into a tmpfs and linked via symbolic links

Use this type to create a virtual disk system suitable in a preload setting. In addition specify the attributes filesystem, and boot="oemboot/suse-*" to control the filesystem used for the virtual and to specify the proper boot image. Using the optional format attribute and setting, the value to iso or usb will create self installing images suitable for optical media or a USB stick, respectively. Booting from the media will deploy the OEM preload image onto the selected storage device of the system. It is also possible to configure the system to use logical volumes. Use the optional lvm attribute and specify the logical volume configuration with the systemdisk child element. The default volume group name is kiwiVG. Further configuration of the image is performed using the appropriate *config child block.

Creating a network boot image is supported by KIWI with the image="pxe" type. When specifying the creation of a network boot image use the filesystem and boot="netboot/suse-*" attributes to specify the filesystem of the image and the proper boot image. To compress the image file set the compressed boolean attribute to true. This setting will compress the image file and has no influence on the filesystem used within the image. The compression is often use to support better transfer times when the pxe image is pushed to the boot server over a network connection. The pxe image layout is controlled by using the pxedeploy child element.

The split image support allows the creation of an image as split files. Using this technique one can assign different filesystems and different read-write properties to the different sections of the image. The oem, pxe, usb, and vmx types can be created as a split system image. Use the boot="oem|netboot|usb|vmx/suse-*" attribute to select the underlying type of the split image. The attributes fsreadwrite, fsreadonly are used to control the read-write properties of the filesystem specified as the attributes value. Use the appropriate *config child block to specify the properties of the underlying image. For example when building a OEM based split image use the oemconfig child section.

Creation of a virtual disk system is enabled with the vmx value of the image attribute. Set the filesystem of the virtual disk with the filesystem attribute and select the appropriate boot image by setting boot="vmxboot/suse-*" The optional format attribute is used to specify one of the virtualization formats supported by QEMU, such as vmdk (also the VMware format) or qcow2. For the virtual disk image the optional vga attribute may be used to configure the kernel framebuffer device. Acceptable values can be found in the Linux kernel documentation for the framebuffer device (see Documentation/fb/vesafb.txt). KIWI also supports the selection of the bootloader for the virtual disk according to the rules indicated for the USB system. Last but not least the virtual disk system may also be created with a LVM based layout by using the lvm attribute. The previously indicated rules apply. Use the machine child element to specify appropriate configuration of the virtual disk system.

Specifies additional kernel parameters. The following example disables kernel messages: kernelcmdline="quiet"

For disk based image types, aka oem and vmx, mdraid activates the creation of a software raid image. The raid inside the image is created in degraded mode because at creation time we only know about one disk. It's in the hand of the user to add devices to the raid after the image runs on the target machine. The value for mdraid can be either mirroring or striping, which means the raid level is set to RAID1 (mirroring) or RAID0 (striping).

Specifies the base name of a license file which is displayed in oem images before the installation happens. It's possible to add more showlicense sections to display more licenses one after the other. If no such element is specified the default 'license' and 'EULA' files are searched. The search algorithm will append the .txt or .locale.txt suffix to the license name to form the license file name. You should make sure that you license files contains this suffix.

Specifies whether RPM should check the package signature or not

Specifies whether RPM should skip installing package documentation

Specifies whether RPM should be called with --force

Specifies the name of the console keymap to use. The value corresponds to a map file in /usr/share/kbd/keymaps. The KEYTABLE variable in /etc/sysconfig/keyboard file is set according to the keyboard mapping.

Specifies the time zone. Available time zones are located in the /usr/share/zoneinfo directory. Specify the attribute value relative to /usr/share/zoneinfo. For example, specify Europe/Berlin for /usr/share/zoneinfo/Europe/Berlin. KIWI uses this value to configure the timezone in /etc/localtime for the image.

Specifies the name of the UTF-8 locale to use, which defines the contents of the RC_LANG system environment variable in /etc/sysconfig/language. Please note only UTF-8 locales are supported here which also means that the encoding must not be part of the locale information. The KIWI schema validates the locale string according to the following pattern:[a-z]{2}_[A-Z]{2}(,[a-z]{2}_[A-Z]{2})*. This means you have to specify the locale like the following example: en_US or en_US,de_DE

Specifies the name of the bootsplash theme to use

Specifies the name of the gfxboot theme to use

Used if the --destdir option is not specified when calling KIWI

Used if the option --root is not specified when calling KIWI

Using the optional systemdisk section it is possible to create a LVM (Logical Volume Management) based storage layout. By default, the volume group is named kiwiVG. It is possible to change the name of the group by setting the name attribute to the desired name. Individual volumes within the volume group are specified using the volume element.

The following example shows the creation of a volume named usr and a volume named var inside the volume group systemVG.

 <systemdisk name="systemVG">
  <volume name="usr" freespace="100M"/>
  <volume name="var" size="200M"/>
</systemdisk>

The optional attribute freespace controls the amount of unused space available after software has been installed in the given volume. By default the available space of a created volume is between 10% and 20%. Using the optional size attribute the absolute size of the given volume is specified. The size attribute takes precedence over the freespace attribute. If the specified size is insufficient, based on the estimated software install size for the given volume, the specified value will be ignored and a volume with default settings will be created. This implies that the volume will be 80% to 90% full.

By default, the oemboot process will create or modify a swap, and / partition. It is possible to influence the behavior by the oem-* elements explained below.

<oemconfig>
   <oem-systemsize>2000</oem-systemsize>
   <oem-... >
</oemconfig>

Information contained in the optional pxedeploy section is only considered if the image attribute of the type element is set to pxe. In order to use a PXE image it is necessary to create a network boot infrastructure. Creation of the network boot infrastructure is simplified by the KIWI provided package kiwi-pxeboot. This package configures the basic PXE boot environment as expected by KIWI pxe images. The kiwi-pxeboot package creates a directory structure in /srv/tftpboot. Files created by the KIWI create step need to be copied to the /srv/tftpboot directory structure. For additional details about the PXE image please refer to the PXE Image chapter later in this document.

In addition to the image files it is necessary that information be provided about the client setup. This information, such as the image to be used or the partitioning, is contained in a file with the name config.MAC in the directory /srv/tftpboot/KIWI. The content of this file is created automatically by KIWI if the pxedeploy section is provided in the image description. A pxedeploy section is outlined below:

<pxedeploy server="IP" blocksize="4096">
   <timeout>seconds</timeout>
   <kernel>kernel-file</kernel>
   <initrd>initrd-file</initrd>
   <partitions device="/dev/sda">
     <partition type="swap" number="1" size="MB"/>
     <partition type="L" number="2" size="MB"
              mountpoint="/" target="true"/>
     <partition type="fd"  number="3"/>
   </partitions>
   <union ro="dev" rw="dev" type="clicfs"/>
   <configuration source="/KIWI/../file" dest="/../file" arch="..."/>
   <configuration .../>
</pxedeploy>

Use the size element to specify the image size in Megabytes or Gigabytes. The unit attribute specifies whether the given value will be interpreted as Megabytes (unit="M") or Gigabytes (unit="G"). The optional boolean attribute additive specifies whether or not the given size should be added to the size of the generated image or not.

In the event of a size specification that is too small for the generated image, KIWI will expand the size automatically unless the image size exceeds the specified size by 100 MB or more. In this case KIWI will generate an error and exit.

Should the given size exceed the necessary size for the image KIWI will not alter the image size as the free space might be required for proper execution of components within the image.

If the size element is not used, KIWI will create an image containing approximately 30 % free space.

<size unit="M">1000</size>

For images of type split or iso the information provided in the optional split section is considered if the compressed attribute is set to true. With the configuration in this block it is possible to determine which files are writable and whether these files should be persistently writable or temporarily. Note that for ISO images only temporary write access is possible.

When processing the provided configuration KIWI distinguishes between directories and files. For example, providing /etc as the value of the name attribute indicates that the /etc directory should be writable. However, this does not include any of the files or sub-directories within /etc. The content of /etc is populated as symbolic links to the read-only files. The advantage of setting only a directory to read-write access is that any newly created files will be stored on the disk instead of in tmpfs. Creating read-write access to a directory and it’s files requires two specifications as shown below.

<split>
  <temporary>
    <!-- read/write access to -->
    <file name="/var"/>
    <file name="/var/*"/>
    <!-- but not on this file: -->
    <except name="/etc/shadow"/>
  </temporary>
  <persistent>
    <!-- persistent read/write access to: -->
    <file name="/etc"/>
    <file name="/etc/*"/>
    <!-- but not on this file: -->
    <except name="/etc/passwd"/>
  </persistent>
</split>

Use the except element to specify exceptions to previously configured rules.

The optional machine section serves to specify information about a VM guest machine. Using the data provided in this section, KIWI will create a guest configuration file required to run the image on the target machine.

If the target is a VMware virtual machine indicated by the format attribute set to vmdk, KIWI creates a VMware configuration file. If the target is a Xen virtual machine indicated by the domain attribute in the machine section KIWI will create a Xen guest config file.

The sample block below shows the general outline of the information that can be specified to generate the configuration file

<machine arch="arch" memory="MB"
  HWversion="number" guestOS="suse|sles"
  domain="dom0|domU"/>
   <vmconfig-entry>Entry_for_VM_config_file<\vmconfig-entry>
   <vmconfig-entry .../>
   <vmnic driver="name" interface="number" mode="mode"/>
   <vmnic ...>
   <vmdisk controller="ide|scsi" id="number"/>
   <vmdvd  controller="ide|scsi" id="number"/>
</machine>

Use the vmconfig-entry element to create entries in the virtual machine's configuration file; .vmx for VMware images and .xenconfig for Xen images. You may specify as many configuration options as desired. The value of the vmconfig-entry element is expected to be specified in the syntax required by the VM configuration file to be written. The value is free format text and is not validated by Kiwi in any way. The entry is written to the VM configuration file verbatime.

Use the vmdisk element to setup the virtual main storage device.

Use the vmdvd element to setup a virtual optical drive (CD/DVD) connection

Use the vmnic element to setup the virtual network interface. Multiple vmnic child elements may be specified to setup multiple virtual network interfaces.

Specifies an alternative name for the configured repository. If the attribute is not specified KIWI will generate an alias name by replacing any “/” in the given repository location with an “_”. It is helpful to set an alias name if the repository path is insufficient in expressing the purpose of the contained packages.

Specifies whether the given repository should be configured as a repository in the image or not. The default behavior is that repositories used to build an image are not configured as a repository inside the image. This feature allows you to change the behavior by setting the value to true. The repository is configured in the image according to the source path as specified with the path attribute of the source element. Therefore, if the path is not a fully qualified URL, you may need to adjust the repository file in the image to accomodate the expected location. It is recommended that you use the alias attribute in combination with the imageinclude attribute to avoid having unpredictable random names assigned to the repository you wish to include in the image. This also facilitates modification of the "baseurl" entry in the .repo file from the config.sh script if you need to make adjustments to the path.

Specifies a password for the given repository. The password attribute must be used in combination with the username attribute. Dependent on the repository location this information may not be used.

The repository providing this attribute will be used primarly to install the license tarball if found on that repository. If no repository with a prefered license attribute exists, the search happens over all repositories. It's not guaranteed in that case that the search order follows the repository order like they are written into the XML description.

Specifies the repository priority for this given repository. Priority values are treated differently by different package managers. Repository priorities allow the package management system to disambiguate packages that may be contained in more than one of the configured repositories. The smart package manager treats packages from repositories with the highest priority number as preferable to packages from a repository with a lower priority number. The value 0 means “no priority is set”. The zypper package manager prefers packages from a repository with a lower priority over packages from a repository with higher priority values. The value 99 means “no priority is set”.

This attribute should only be applied in the context of a boot image description. Setting the status to replaceable indicates that the specified repository my be replaced by the repositories specified in the image description. This is important as the KIWI generated boot image, if required, should be created based on packages from the same repositories used to build the system image.

Specifies a user name for the given repository. The username attribute must be used in combination with the password attribute. Dependent on the repository location this information may not be used.

An absolute path to a directory accessible through the local file system. The “dir://” prefix may be omitted.

A ftp protocol based network location.

A http protocol based network location.

A https protocol based network location. See the comment above about the handling of certificates and additional package requirements in the bootstrap section of the image configuration.

An absolute path to an .iso file accessible via the local file system. KIWI will loop mount the the .iso file to a KIWI created directory with a generated name. The generated path is provided to the specified package manager as a repository location.

Using multiple .iso files from the same SLE product, requires that all .iso files are located in the same directory. Only the first .iso file is to be specified as a repository in the config.xml. The first .iso file contains all information necessary for the package manager to locate packages that are contained in other .iso files of the same product. Attempting to use multiple .iso files in a series as standalone repositories will result in an error.

A special network location used with the http protocol. The values of $dir1 and $dir2 represent the project location in the openSUSE build service. The location is evaluated as this://repos/$dir1/$dir2.

The “obs://” prefix is also valid as part of the value for the boot attribute of the type. If used with the boot attribute it is evaluated as this://images/$dir1/$dir2.

A special network location used with the http protocol. The given PROJECTNAME specifies a project in the openSUSE buildservice. The repository is a repository of type rpm-md. For example: path= "opensuse://openSUSE:10.3/standard" .

A plain resource string. Everything following 'plain://' will be forwarded to the package manager without further modification. This type of location specification is useful when KIWI does not support a specific URI but the specified package manager does.

A path to a samba share using the cifs protocol. KIWI creates a mount point and mounts the share including username and password, if specified. Access to the smb share from within the new root tree is provided via a cifs mount. Therefore, the package providing the cifs tools must be included in the package list for the bootstrap section of the image configuration. At the time of this writing the package providing the cifs tools is called cifs-utils. If any packages provided by the Samba share are used as part of the boot image the cifs tools must also be included in the boot image. This is accomplished with the bootinclude attribute of the package element. This is shown in the example below:

<packages type="bootstrap">
  <package name="cifs-utils" bootinclude="true"/>
  </packages>

PATH is the relative location to the image description directory for the curent image.

Bootstrap packages, list of packages for the new operating system root tree. The packages list the required components to support a chroot environment in the new system root tree, such as glibc.

Delete packages, list of packages to be deleted from the image being created.

When using the delete type only package elements are considered, all other specifications such as namedCollection are ignored. The given package names are stored in the $delete environment variable of the /.profile file created by KIWI. The list of package names is returned by the baseGetPackagesForDeletion function. This list can then be used to delete the packages ignoring requirements or dependencies. This can be accomplished in the config.sh or images.sh script by calling the following helper function:

suseRemovePackagesMarkedForDeletion

Note, that the delete value is indiscriminate of the image type being built.

Image packages, list of packages to be installed in the image.

Image packages, a list of additional packages to be installed when building an ISO image.

Image packages, a list of additional packages to be installed when building an OEM image.

Image packages, a list of additional packages to be installed when building an PXE image.

Image packages, a list of additional packages to be installed when building a vmx virtual image of any format.

Specifies which image (name) should be loaded with which version (version) and to which storage device (device) it should be linked, e. g., /dev/ram1 or /dev/hda2. The netboot client partition (device) hda2 defines the root file system / and hda1 is used for the swap partition. The numbering of the hard disk device should not be confused with the RAM disk device, where /dev/ram0 is used for the initial RAM disk and can not be used as storage device for the second stage system image. SUSE recommends to use the device /dev/ram1 for the RAM disk. If the hard drive is used, a corresponding partitioning must be performed.

Specifies a comma-separated list of source:target configuration files. The source (src) corresponds to the path on the TFTP server and is loaded via TFTP. The download is made to the file on the netboot client indicated by the target (dest). Download only happens when configuration files are missing on the client or, if md5sum hash is supplied ([hash]), when different. To achieve this, list of CONF files (and VENDOR_CONF) files is kept on the client in the /etc/KIWI/InstalledConfigFiles file, and is compared to the CONF data gathered from the config.MAC and also from other configuration files, e.g. config.group, if supplied. Configuration files selected for comparison are those with same (dest) path. If destination path (dest) is same for more configuration files, only the last one is used (and VENDOR_CONF has always precedence to CONF). By comparing configuration file lists present in the current CONF, VENDOR_CONF variables and stored in the backup file, following actions can result:

Note that actual configuration files (or their md5sum hashes) on the client machine are not tested, only data from the backup file are used. This means that actual configuration files can be altered or even deleted without triggering any action, or, on the other hand, an action can be triggered without modifying the configuration files, only by modifying or removing of the backup file.

Specifies the partitioning data. The comma-separated list must contain the size (size), the type number (id), and the mount point (Mount). The size is measured in MB by default. The mount specifies the directory the partition is mounted to.

In addtion to the PART line it's also allowed to add a raid array setup. The first parmater of the RAID line is the raid level. So far only raid1 (mirroring) is supported. The second and third parameter specifies the raid disk devices which makes up the array. If a RAID line is present all partitions in PART will be created as raid partitions. The first raid is named md0 the second one md1 and so on. It's required to specifiy the correct raid partition in the IMAGE line according to the PART setup. A typical raid image setup could look like this:

DISK=/dev/sda
RAID='1;/dev/sda;/dev/sdb'
IMAGE='/dev/md1;LimeJeOS-openSUSE-##.#.i686;1.11.3;192.168.100.2;4096'
PART='5;S;x,2000;83;/'

Specifies the hard disk. Used only with PART and defines the device via which the hard disk can be addressed, e.g., /dev/hda.

If set to a non-empty string, this will reboot the system after the initial deployment process is done. This means before the system init process is activated the system is rebooted. If the machine's default boot setup is to boot via PXE it will again boot from the network.

During the initial deployment process kiwi checks if the running kernel is the same as the kernel installed via the system image. If there is a mismatch kiwi activates the installed kernel by calling kexec. This is mostly the same as to perform a reboot but without the need of the BIOS or any bootloader. If FORCE_KEXEC is set to a non-empty string kiwi will also perform kexec if the kernel versions matches.

If set to a non-empty string, this forces the configured image to be loaded from the server even if the image on the disk is up-to-date. The primary purpose of this setting is to aid debugging. The option is sensible only for disk based systems.

If set to a non-empty string, this forces all config files to be loaded from the server. The primary purpose of this setting is to aid debugging. The option is sensible only for disk based systems.

If set to a non-empty string, indicates that the both image specified needs to be combined into one bootable image, whereas the first image defines the read-write part and the second image defines the read-only part.

Specifies the KIWI initrd to be used for local boot of the system. The variables value must be set to the name of the initrd file which is used via PXE network boot. If the standard tftp setup suggested with the kiwi-pxeboot package is used all initrd files resides in the boot/ directory below the tftp server path /var/lib/tftpboot. Because the tftp server do a chroot into the tftp server path you need to specify the initrd file as the following example shows:

KIWI_INITRD=/boot/name-of-initrd-file

For netboot images there is the possibility to use overlayfs as container filesystem in combination with a compressed system image. The recommended compressed filesystem type for the system image is overlayfs.

UNIONFS_CONFIG=/dev/sda2,/dev/sda3,overlayfs

In this example the first device /dev/sda2 represents the read/write filesystem and the second device /dev/sda3 represents the compressed system image filesystem. The union filesystem overlayfs is then used to cover the read/write layer with the read-only device to one read/write filesystem. If a file on the read-only device is going to be written the changes inodes are part of the read/write filesystem. Please note the device specifications in UNIONFS_CONFIG must correspond with the IMAGE and PART information. The following example should explain the interconnections:

DISK=/dev/sda
IMAGE='/dev/sda3;image/myImage;1.1.1;192.168.1.1;4096'
PART='200;S;x,300;L;/,x;L;x'
UNIONFS_CONFIG=/dev/sda2,/dev/sda3,overlayfs

As the second element of the PART list must define the root partition it’s absolutely important that the first device in UNIONFS_CONFIG references this device as read/write device. The second device of UNIONFS_CONFIG has to reference the given IMAGE device name.

Specifies additional command line options to be passed to the kernel when booting from disk. For instance, to enable a splash screen, you might use vga=0x317 splash=silent.

Specifies the number of seconds to wait at the grub boot screen when doing a local boot. The default is 10.

Mount the system image root filesystem remotely via NBD (Network Block Device). This means there is a server which exports the root directory of the system image via a specified export name. The kernel provides the block layer, together with a remote port that uses the nbd-server program. For more information on how to set up the server, see the nbd-server man pages. The kernel on the remote client can set up a special network block device named /dev/nb0 using the nbd-client command. After this device exists, the mount program is used to mount the root filesystem. To allow the KIWI boot image to use that, the following information must be provided:

NBDROOT=NBD.Server.IP.address;\
NBD-Export-Name;/dev/NBD-Device;\
NBD-Swap-Export-Name;/dev/NBD-Swap-Device;\
NBD-Write-Export-Name;/dev/NBD-Write-Device

The server IP and the export name are mandatory information. Whereas the other parameters are optional. The default device names are, NBD-Device = /dev/nbd0, NBD-Swap-Device = /dev/nbd1 and NBD-Write-Device = /dev/ram1 . The setup of swap and/R/W over nbd depends on if there are export names given or not. In addition a requested nbd swap space is only established if the client has less than 48 MB of RAM. The optional NBD-Write-Export-Name and NBD-Write-Device specifies a write COW location for the root filesystem. A separate write device is only used together with a union setup based on e.g overlayfs

Mount the system image root filesystem remotely via AoE (ATA over Ethernet). This means there is a server which exports a block device representing the root directory of the system image via the AoE subsystem. The block device could be a partition of a real or a virtual disk. In order to use the AoE subsystem I recommend to install the aoetools and vblade packages from here first: http://download.opensuse.org/repositories/server:/ltsp. Once installed the following example shows how to export the local /dev/sdb1 partition via AoE:

vbladed 0 1 eth0 /dev/sdb1

Some explanation about this command, each AoE device is identified by a couple Major/Minor, with major between 0-65535 and minor between 0-255. AoE is based just over Ethernet on the OSI models so we need to indicate which ethernet card we’ll use. In this example we export /dev/sdb1 with a major value of 0 and minor of 1 on the eth0 interface. We are ready to use our partition on the network! To be able to use the device KIWI needs the information which AoE device contains the root filesystem. In our example this is the device /dev/etherd/e0.1. According to this the AOEROOT variable must be set as follows:

AOEROOT=/dev/etherd/e0.1

KIWI is now able to mount and use the specified AoE device as the remote root filesystem. In case of a compressed read-only image with overlayfs, the AOEROOT variable can also contain a device for the write actions:

AOEROOT=/dev/etherd/e0.1,/dev/ram1

Writing to RAM is the default but you also can set another device like another aoe location or a local device for writing the data

Mount the system image root filesystem remotely via NFS (Network File System). This means there is a server which exports the root filesystem of the network client in such a way that the client can mount it read/write. In order to do that, the boot image must know the server IP address and the path name where the root directory exists on this server. The information must be provided as in the following example:

NFSROOT=NFS.Server.IP.address;/path/to/root/tree

Specifies the KIWI initrd to be used for a local boot of the system. The value must be set to the name of the initrd file which is used via PXE network boot. If the standard TFTP setup suggested with the kiwi-pxeboot package is used, all initrd files reside in the /srv/tftpboot/boot/ directory. Because the TFTP server does a chroot into the TFTP server path, you must specify the initrd file as follows:

KIWI_INITRD=/boot/name-of-initrd-file

Specifies the kernel to be used for a local boot of the system The same path rules as described for KIWI_INITRD applies for the kernel setup:

KIWI_KERNEL=/boot/name-of-kernel-file

Specifies a message which is displayed during first deployment. Along with the message a shell is provided. This functionality should be used to send the user a message if it’s clear the boot process will fail because the boot environment or something else influences the PXE boot process in a bad way.

Name or IP address of the server who implements the protocol

Name of the download protocol which could be one of http, https or ftp
