TextEntry
Prev Standard (mandatory) widgets Next

Name

TextEntry, Password — Input field

Synopsis

TextEntry ( string  label ,
  string  defaulttext );
Password ( string  label ,
  string  defaulttext );

Parameters

string label

the label describing the meaning of the entry

Options

shrinkable

make the input field very small

Optional Arguments

string defaulttext

The text contained in the text entry

Properties

string Value

the field's contents ( the user input )

string Label

label above the field

string ValidChars

valid input characters

interger InputMaxLength

limit the amount of characters

Description

This widget is a one line text entry field with a label above it. An initial text can be provided.

[Note]Note

You can and should set a keyboard shortcut within the label. When the user presses the hotkey, the corresponding text entry widget will get the keyboard focus.

Usage

 	`TextEntry( `id( `name ), "Enter your name:", "Kilroy" )

Examples

          {
    UI::OpenDialog(
	       `VBox(
		     `TextEntry("Name:"),
		     `PushButton("&OK")
		     )
	       );
    UI::UserInput();
    UI::CloseDialog();
}




          {
    // Build dialog with one text entry field and an OK button.
    UI::OpenDialog(
	       `VBox(
		     `TextEntry(`id(`name), "Name:"),
		     `PushButton("&OK")
		     )
	       );

    // Wait for user input.
    UI::UserInput();

    // Get the input from the text entry field.
    //
    // Notice: The return value of UI::UserInput() does NOT return this value!
    // Rather, it returns the ID of the widget (normally the PushButton)
    // that caused UI::UserInput() to return.
    string name = (string) UI::QueryWidget(`id(`name), `Value);

    // Close the dialog.
    // Remember to read values from the dialog's widgets BEFORE closing it!
    UI::CloseDialog();

    // Pop up a new dialog to echo the input.
    UI::OpenDialog(
	       `VBox(
		     `Label("You entered:"),
		     `Label(name),
		     `PushButton("&OK")
		     )
	       );
    UI::UserInput();
    UI::CloseDialog();
}




          {
    // Build dialog with one text entry field and an OK button.
    UI::OpenDialog(
	       `VBox(
		     `TextEntry(`id(`name), "You will never see this:"),
		     `PushButton("&OK")
		     )
	       );

    // Set an initial value for the text entry field.
    UI::ChangeWidget(`id(`name), `Value, "Averell Dalton");

    // Change the text entry field's label.
    UI::ChangeWidget(`id(`name), `Label, "Name:");

    // Wait for user input.
    UI::UserInput();

    // Get the input from the text entry field.
    //
    // Notice: The return value of UI::UserInput() does NOT return this value!
    // Rather, it returns the ID of the widget (normally the PushButton)
    // that caused UI::UserInput() to return.
    string name = (string) UI::QueryWidget(`id(`name), `Value);

    // Close the dialog.
    // Remember to read values from the dialog's widgets BEFORE closing it!
    UI::CloseDialog();


    // Pop up a new dialog to echo the input.
    UI::OpenDialog(
	       `VBox(
		     `Label("You entered:"),
		     `Label(name),
		     `PushButton("&OK")
		     )
	       );
    UI::UserInput();
    UI::CloseDialog();
}




          {

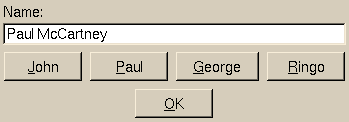

    // Build dialog with one text entry field, 4 Beatles buttons and an OK button.
    UI::OpenDialog(
	       `VBox(
		     `TextEntry(`id(`name), "Name:"),
		     `HBox(
			   `PushButton(`id(`john),	"&John"	 ),
			   `PushButton(`id(`paul),	"&Paul"	 ),
			   `PushButton(`id(`george),	"&George"),
			   `PushButton(`id(`ringo),	"&Ringo" )),
		     `PushButton(`id(`ok), "&OK")
		     )
	       );

    // Wait for user input.
    any button = nil;

    // Input loop that only the OK button will leave.
    // The 4 Beatles buttons will just propose a name.
    repeat
    {
        button = UI::UserInput();

	if      ( button == `john )	UI::ChangeWidget(`id(`name), `Value, "John Lennon");
	else if ( button == `paul )	UI::ChangeWidget(`id(`name), `Value, "Paul McCartney");
	else if ( button == `george )	UI::ChangeWidget(`id(`name), `Value, "George Harrison");
	else if ( button == `ringo )	UI::ChangeWidget(`id(`name), `Value, "Ringo Starr" );

    } until ( button == `ok );

    UI::CloseDialog();
}




          {
    // Build dialog with one text entry field and an OK button.
    UI::OpenDialog(
	       `VBox(
		     `TextEntry(`id(`hex_digits), "Hex number:"),
		     `PushButton("&OK")
		     )
	       );

    UI::ChangeWidget(`id(`hex_digits), `ValidChars, "0123456789abcdefABCDEF" );

    // Wait for user input.
    UI::UserInput();

    // Get the input from the text entry field.
    //
    // Notice: The return value of UI::UserInput() does NOT return this value!
    // Rather, it returns the ID of the widget (normally the PushButton)
    // that caused UI::UserInput() to return.
    string name = (string) UI::QueryWidget(`id(`hex_digits), `Value);

    // Close the dialog.
    // Remember to read values from the dialog's widgets BEFORE closing it!
    UI::CloseDialog();

    // Pop up a new dialog to echo the input.
    UI::OpenDialog(
	       `VBox(
		     `Label("You entered:"),
		     `Label(name),
		     `PushButton("&OK")
		     )
	       );
    UI::UserInput();
    UI::CloseDialog();
}




          {
    // Build dialog with one text entry field and an OK button.
    UI::OpenDialog(
	       `VBox(
		     `TextEntry(`id(`hex_digits), "Hex number:"),
		     `PushButton("&OK")
		     )
	       );

    UI::ChangeWidget(`id(`hex_digits), `ValidChars, "0123456789abcdefABCDEF" );

    // Wait for user input.
    UI::UserInput();

    // Get the input from the text entry field.
    //
    // Notice: The return value of UI::UserInput() does NOT return this value!
    // Rather, it returns the ID of the widget (normally the PushButton)
    // that caused UI::UserInput() to return.
    string name = (string) UI::QueryWidget(`id(`hex_digits), `Value);

    // Close the dialog.
    // Remember to read values from the dialog's widgets BEFORE closing it!
    UI::CloseDialog();

    // Pop up a new dialog to echo the input.
    UI::OpenDialog(
	       `VBox(
		     `Label("You entered:"),
		     `Label(name),
		     `PushButton("&OK")
		     )
	       );
    UI::UserInput();
    UI::CloseDialog();
}




          {
    // Build dialog with two password fields, an "OK" and a "Cancel" button.
    UI::OpenDialog(
	       `VBox(
		     `Password(`id(`pw1), "Enter password:"),
		     `Password(`id(`pw2), "Confirm password:"),
		     `HBox(
			   `PushButton(`id(`ok),     "&OK"    ),
			   `PushButton(`id(`cancel), "&Cancel")
			   )
		     )
	       );
    any button = nil;
    string pw1 = "";
    string pw2 = "";


    // Input loop. Will be terminated when the same password has been
    // entered in both fields or when 'Cancel' has been clicked.
    repeat
    {
	// Wait for Input.
        button = UI::UserInput();

	// Get the values from both password fields.
	pw1 = (string) UI::QueryWidget(`id(`pw1), `Value );
	pw2 = (string) UI::QueryWidget(`id(`pw2), `Value );

	if ( button != `cancel )
	{
	    if ( pw1 == "" && pw2 == "" )
	    {
		// Error popup if nothing has been entered.
		UI::OpenDialog(
			   `VBox(
				 `Label("You must enter a password."),
				 `PushButton("&OK")
				 )
			   );
		UI::UserInput();
		UI::CloseDialog();
	    }
	    else if ( pw1 != pw2 )
	    {
		// Error popup if passwords differ.
		UI::OpenDialog(
			   `VBox(
				 `Label("The two passwords mismatch."),
				 `Label("Please try again."),
				 `PushButton("&OK")
				 )
			   );
		UI::UserInput();
		UI::CloseDialog();
	    }
	}
    } until ( ( pw1 != "" && pw1 == pw2 ) ||
	      button == `cancel );

    UI::CloseDialog();
}


          {
    // Build dialog with two password fields, an "OK" and a "Cancel" button.
    UI::OpenDialog(
	       `VBox(
		     `Password(`id(`pw1), "Enter password:"),
		     `Password(`id(`pw2), "Confirm password:"),
		     `HBox(
			   `PushButton(`id(`ok),     "&OK"    ),
			   `PushButton(`id(`cancel), "&Cancel")
			   )
		     )
	       );
    any button = nil;
    string pw1 = "";
    string pw2 = "";


    // Input loop. Will be terminated when the same password has been
    // entered in both fields or when 'Cancel' has been clicked.
    repeat
    {
	// Wait for Input.
        button = UI::UserInput();

	// Get the values from both password fields.
	pw1 = (string) UI::QueryWidget(`id(`pw1), `Value );
	pw2 = (string) UI::QueryWidget(`id(`pw2), `Value );

	if ( button != `cancel )
	{
	    if ( pw1 == "" && pw2 == "" )
	    {
		// Error popup if nothing has been entered.
		UI::OpenDialog(
			   `VBox(
				 `Label("You must enter a password."),
				 `PushButton("&OK")
				 )
			   );
		UI::UserInput();
		UI::CloseDialog();
	    }
	    else if ( pw1 != pw2 )
	    {
		// Error popup if passwords differ.
		UI::OpenDialog(
			   `VBox(
				 `Label("The two passwords mismatch."),
				 `Label("Please try again."),
				 `PushButton("&OK")
				 )
			   );
		UI::UserInput();
		UI::CloseDialog();
	    }
	}
    } until ( ( pw1 != "" && pw1 == pw2 ) ||
	      button == `cancel );

    UI::CloseDialog();
}


          {

UI::OpenDialog(
    `VBox(
	`TextEntry( `id( `input ), "Text entry", "pizza, pasta, pronta" ),
	`IntField( `id ( `field ), "Limit characters to...", -1, 100, -1 ),
	`PushButton( `id ( `butt ),"limit input" ),
	`PushButton( `id ( `exitButton ), "Exit" )
	)
);

any ret = nil;

ret = UI::UserInput();

while ( ret != `exitButton ) {
    integer chars = (integer) UI::QueryWidget(`id(`field), `Value);
    UI::ChangeWidget( `input, `InputMaxLength, chars );
    ret = UI::UserInput();
}

UI::CloseDialog();


}
